 SoftLab is a space dedicated to the research and development of artistic projects using soft-circuits and wearable technology in the Center for Digital Arts & Experimental Media (DxArts) at the University of Washington, in Seattle.


Listening Space by Afroditi Psarra & Audrey Briot

Listening Space by Afroditi Psarra & Audrey Briot

Listening Space is an artistic research that was born during the eTextile Spring Break camp event that took place in upstate New York at the beginning of April 2019. During this week-long artistic residency, electronic textile practitioners from around the globe gather to exchange ideas and techniques, participate in collaborative teaching and learning, and brainstorm on new projects that can facilitate the development of the field. The theme for this year’s camp was “Ritual” and in this context Greek multidisciplinary artist and assistant professor at DXARTS, UW, Afroditi Psarra, collaborated with French textile designer and founder of the Datapaulette hackerspace in Paris, Audrey Briot.

Following our previous explorations of ecologies of transmissions, and wanting to experiment with Software-Defined Radio, we setup a DIY satellite tracking station and aimed at intercepting the NOAA weather satellite audiovisual transmissions. During the course of three days, we observed five satellite passes, intercepted successfully three transmissions and decoded the audio signals into images which we later knitted in order to create a textile archive of the transmissions. This process served as a fast prototyping technique to give shape to our idea, but the limitations we had in terms of materials, time, space for observation and lack of expertise in satellite tracking were evident. Nevertheless, the idea of listening to these otherwise hidden transmissions, intercepting them using DIY means and low-cost methodologies and interpreting them through digital crafting means aligned perfectly with the idea of citizen science that both of us are trying to explore in our work.

Conceptual axis:

The ecologies of transmission that comprise the Radio Spectrum, are no doubt the ultimate expression of the Antropocene, as they permit the operation of human life as we know it (telecommunications, environmental monitoring, radio astronomy, FM/AM radio etc) and shape our understanding of the planet. In this context the research project Listening Space seeks to explore satellite transmissions as raw material for artist exploration, to understand and re-imagine in poetic means, representations of audio and images broadcasted from space.

References/inspiration:

https://www.ewenchardronnet.com/semaphore/acoustic_space_lab/

https://satnogs.org/

https://libre.space/

Tech:

RTL-SDR

CubicSDR

Noaa-apt

WXtoImg Beta to decode

Brother KH-930 knitting machine

SilverReed SK-840 knitting machine

Experiments:

Antenna designs

a. Sierpinski Triangle textile antenna made with copper conductive paint and vinyl cut stencil method.


b. Enamelled copper wire V-dipole antenna


c. Copper tape V-dipole antenna

d. V-dipole antenna made of a coat’s hanger


e. V-dipole telescopic antenna from RTL-SDR

Successful recordings in Wassaic:

Noaa14_4_11

Noaa18_4_11

Noaa15_4_12

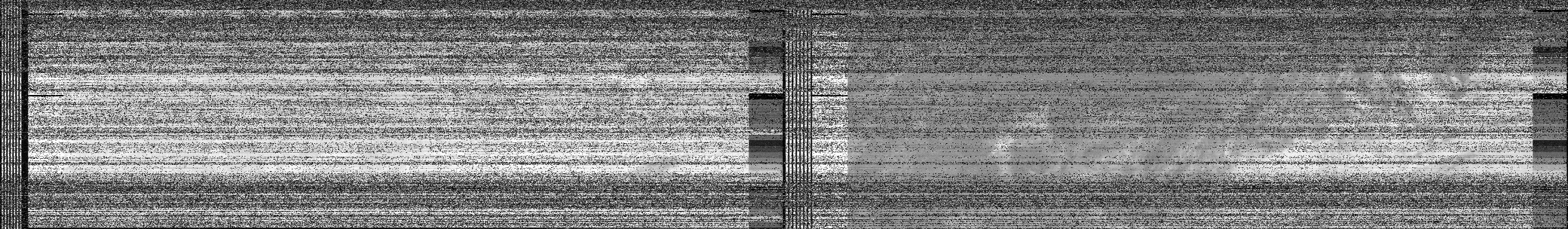

Decodes:

From The Wassaic Project, Amenia, NY - using the coat’s hanger V-dipole antenna. ZIP code: 12592

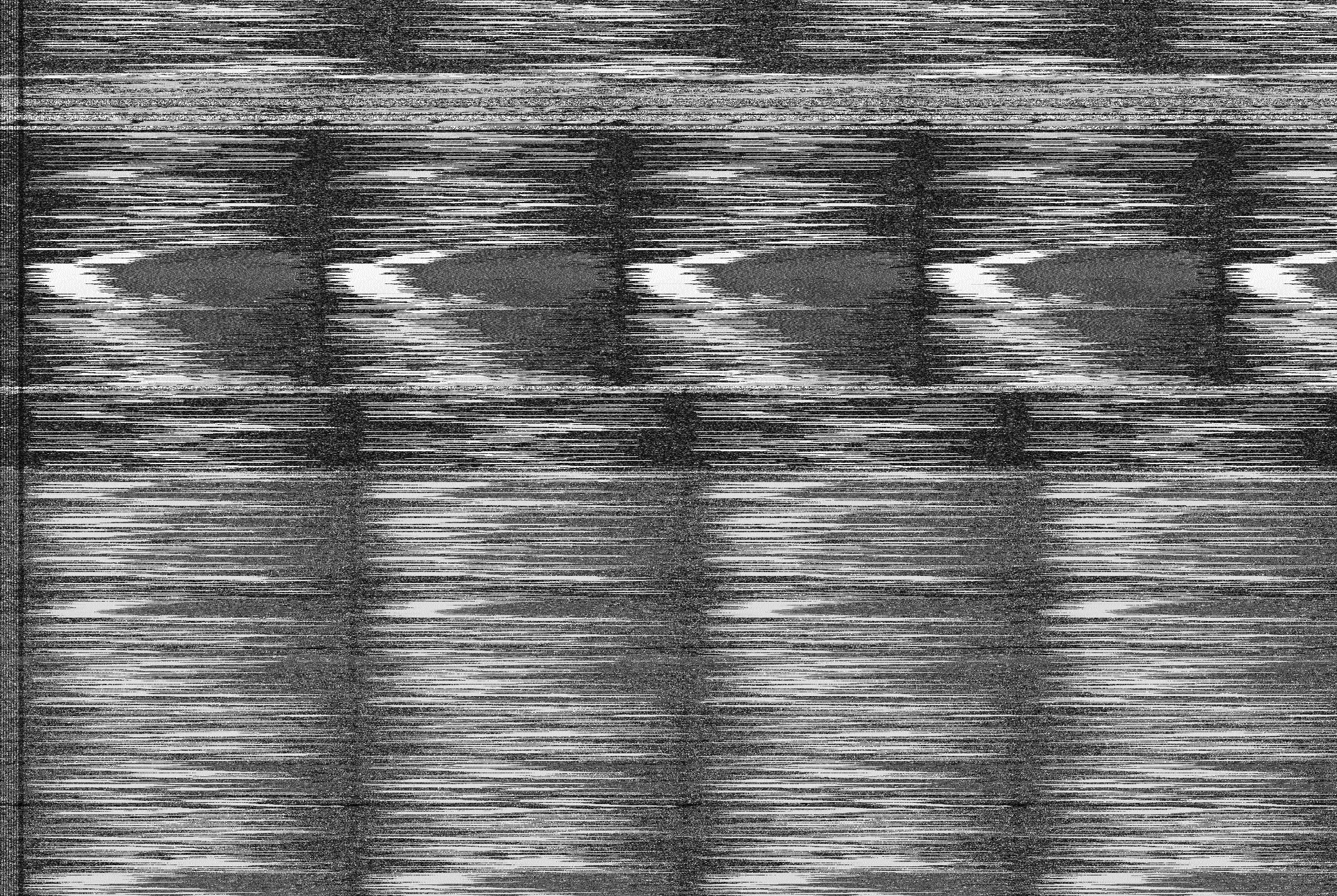

Noaa14_4_11_137.000_18:49

Noaa14_4_11_137.000_18:49

Noaa14_4_11_137.000_18:32

Noaa14_4_11_137.000_18:32

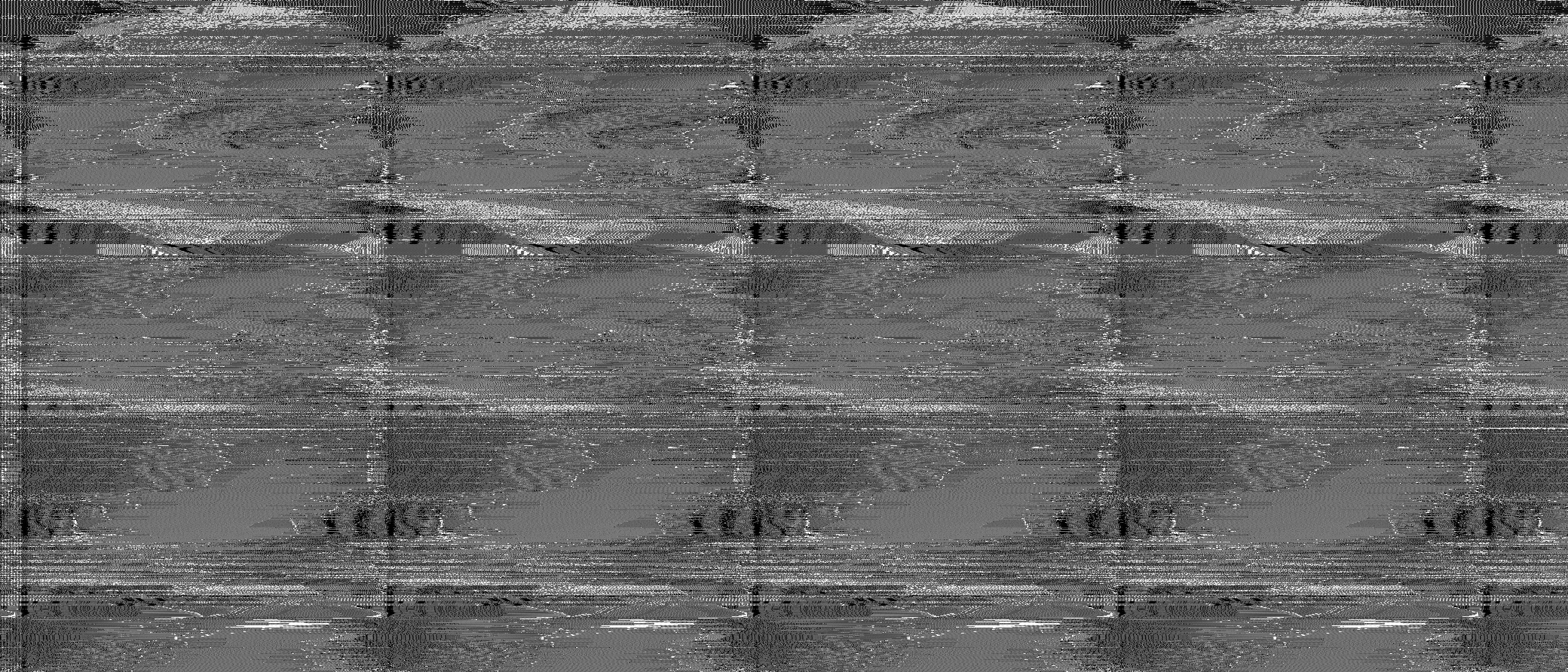

Noaa18_4_11_137.000_18:29

Noaa18_4_11_137.000_18:29

Noaa15_4_12_137.623_16:18

Noaa15_4_12_137.623_16:18

From Saint-André, France - using the V-dipole telescopic antenna from the RTL-SDR dongle kit. ZIP code : 66690

NOAA18_5_8_137.915_22:06

NOAA18_5_8_137.915_22:06

NOAA18_5_10_137.916_21:43

NOAA18_5_10_137.916_21:43

Knits:

The following knits were created at The Wassaic Project during the eTextile Spring Break camp using a hacked Brother KH-930 knitting machine.

Detail from the Noaa14_4_11_137.000_18:32 recording

Detail from the Noaa14_4_11_137.000_18:32 recording

Detail from the Noaa14_4_11_137.000_18:49 recording

Detail from the Noaa14_4_11_137.000_18:49 recording

The knits below were created at the DXARTS SoftLab using a SilverReed SK-840 knitting machine.

Details from the Noaa15_4_12_137.623_16:18 recording.

Details from the Noaa15_4_12_137.623_16:18 recording.

Future steps:

As from May 2nd 2019, Listening Space was selected as the recipient of the Bergstrom Award for Art & Science of the University of Washington. The Bergstrom Award will provide an exciting opportunity to further this research project by organizing a one-month residency at DXARTS for Audrey Briot, and a week-long residency for Eleutherios Kosmas (Libre Space Foundation Vice Chairperson and SatNOGS founder) in order to engage in deeper conversations and experimentation on the subject of satellite imagery tracking and the re-interpretation of the data collected for artistic exploration.

During Audrey’s residency we will focus on developing the experimental processes we require to detect and translate the satellite transmissions in compositional techniques. This time will be dedicated in creating the tracking system, experimenting with different antennas designs, collecting transmissions and visualizing/sonifying the data collected. At the end of Spring quarter 2020 and towards the end of Audrey’s residency, we intend to host an art and science workshop at UW, open to students of all-levels across campus who wish to experiment with satellite tracking and discuss the sociopolitical and aesthetic connotations that such a research embodies. In the context of this workshop, we also intend to host Eleutherios Kosmas at UW to talk about the work that Libre Space Foundation does and the importance of open software and hardware in space exploration, as well as connect with the Satellite Image Analysis Special Interest Group at the eScience Institute and the DUB community in order for him to mentor students interested in this field of research.

More updates on the project to be posted soon…!
